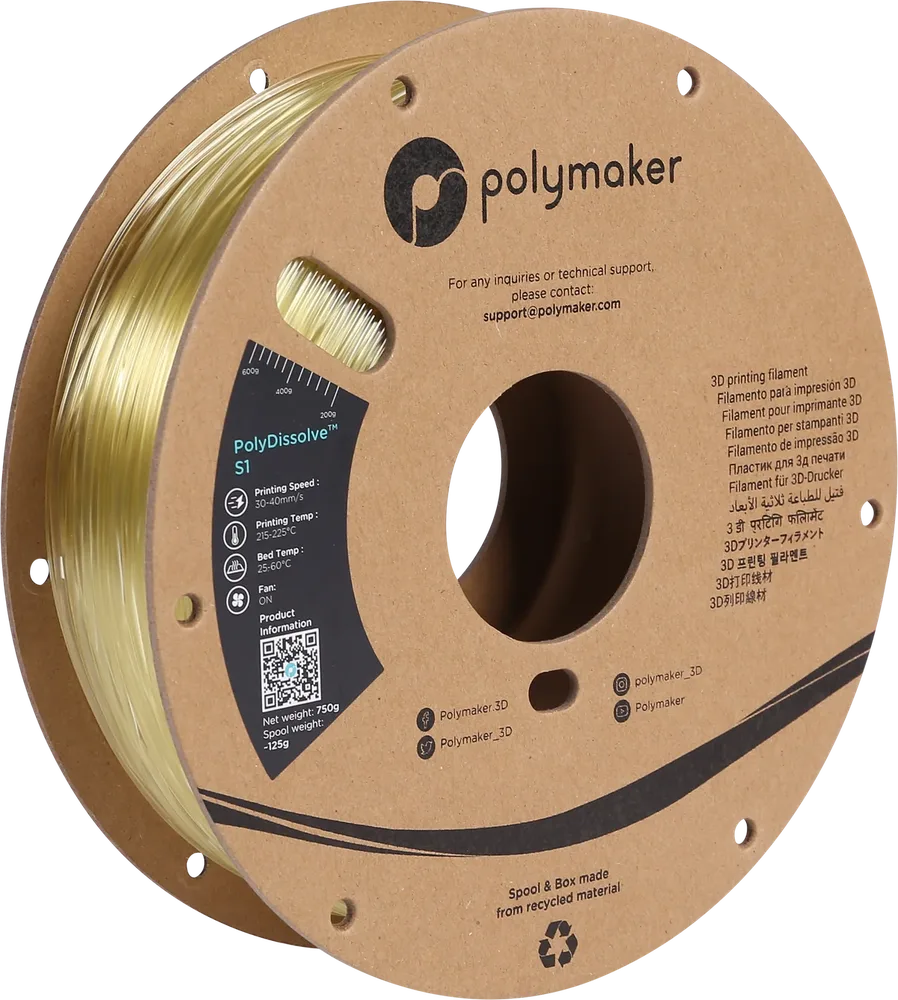

PolyDissolve™ S1 (PVA)

PolyDissolve™ S1 is a PVA based water dissolvable support for PLA, TPU, PVB and Nylon based filaments from our portfolio. It is specifically engineered to have a perfect interface with these materials while also displaying good solubility.

What material can PolyDissolve™ S1 support?

PolyDissolve™ S1 can support PLA, PVB, TPU and Nylon based materials from our portfolio.

Printing and Drying Settings?

Printing Temperature: 215˚C - 225˚C

Bed Temperature: 25˚C - 60˚C

Printing Speed: 30mm/s - 40mm/s

Fan: ON

Direct Drive:

Retraction Distance: 1mm

Retraction Speed: 20mm/s

Indirect Drive:

Retraction Distance: 3mm

Retraction Speed: 40mm/s

Drying Settings: 80˚C for 12h

(Only if the material has absorbed moisture)

PolyDissolve™ S1 is very hygroscopic, please make sure to use a dry box.

How long does it take for PolyDissolve™ S1 to dissolve?

It can take 6-12hours to fully dissolve depending on your setup.

You can speed up the process:

- By increasing the water temperature

- By changing the water regularly

- By adding a pump to make the water flowing

Spool Dimensions?

0.5kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm

Spool Diameter: 200±1mm

Spool Width: 65.6±2mm

Spool Weight: 190±7g

0.75kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 200±1mm Spool Width: 50.6±2mm Spool Weight: 125±7g

1kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 200±1mm Spool Width: 65.6±2mm Spool Weight: 140±7g

2kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 250±1mm Spool Width: 117.2±2mm Spool Weight: 370±18.5g

3kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 250±1mm Spool Width: 117.2±2mm Spool Weight: 425±21.3g

5kg plastic spool: 32mm/300mm/160mm/819g

Spool Inner Hole Diameter: 32 ±1mm Spool Diameter: 300±1mm Spool Width: 160±1mm Spool Weight: 819±30g

Spool Material: PP
