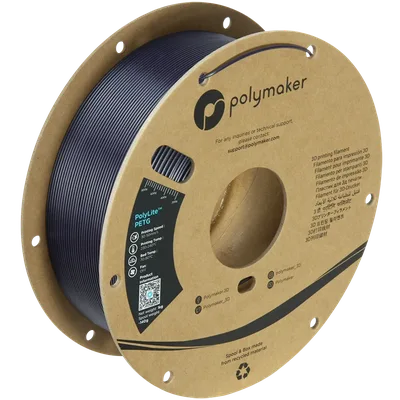

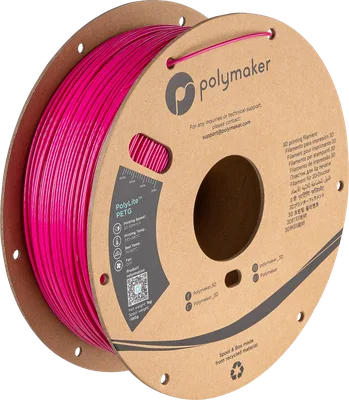

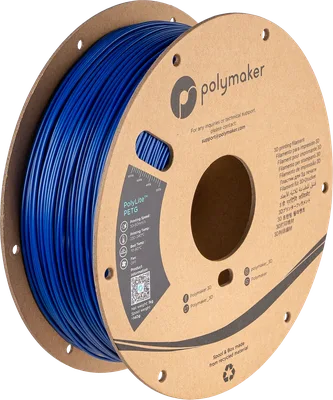

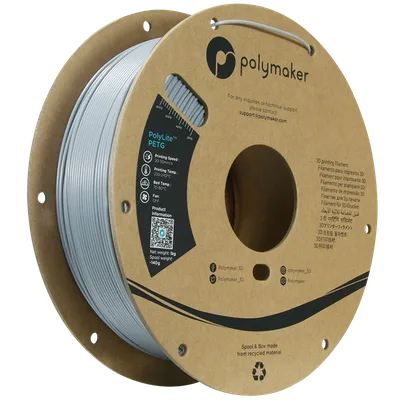

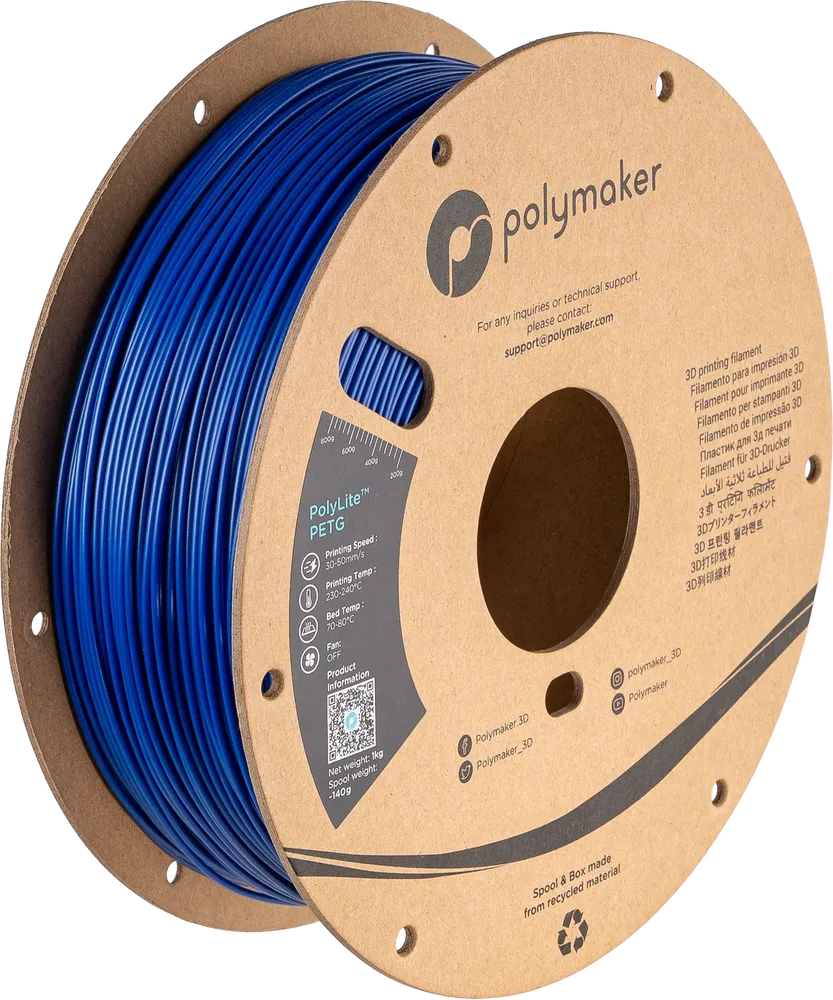

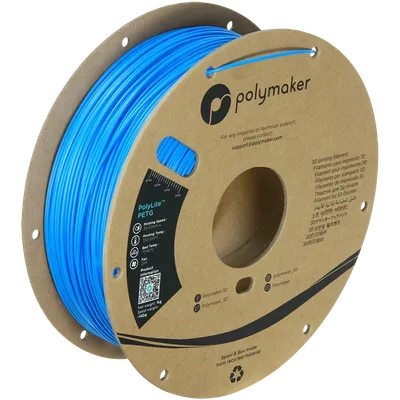

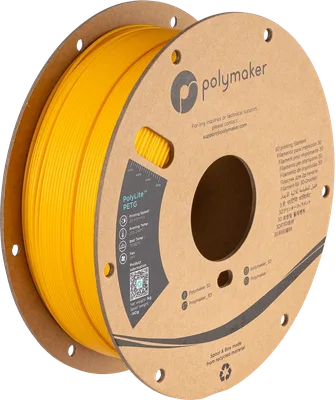

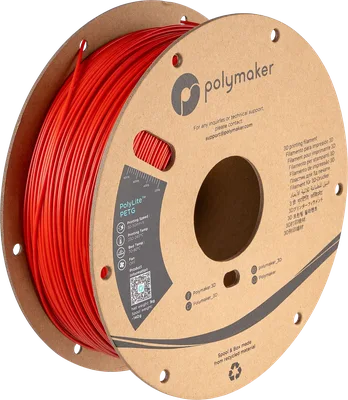

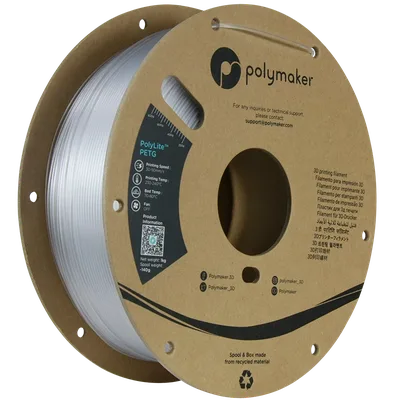

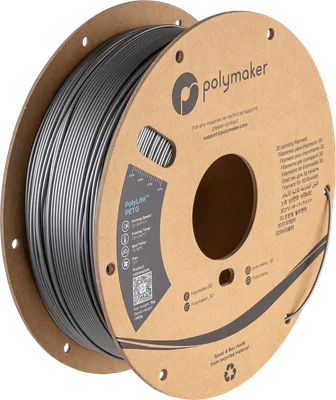

PolyLite™ PETG

PolyLite™ PETG is an affordable PETG filament with balanced mechanical properties and ease of printing.

What is PETG?

If we had a simple axis going from "low durability but easy to print" on the left to "high durability but challenging to print" on the right.

PLA would be in the far left, ABS would be in the far right and PETG would be exactly in the middle.

Printing temperature: (PLA+ABS)/2

Heat resistance: (PLA+ABS)/2

Strength: (PLA+ABS)/2

Feel free to check our TDS below for more scientific information.

Printing and Drying Settings?

Printing Temperature: 230˚C - 240˚C

Bed Temperature: 70˚C - 80˚C

Printing Speed: 30mm/s - 50mm/s

Fan: 20%

Direct Drive:

Retraction Distance: 1mm

Retraction Speed: 20mm/s

Indirect Drive:

Retraction Distance: 3mm

Retraction Speed: 40mm/s

Drying Settings: 65˚C for 6h

(Only if the material has absorbed moisture)

Do I need to use the cooling fan with PETG?

Yes if you are looking for nice surface finish.

No if you are looking for strong and durable parts.

20% ON if you want the best of both worlds.

Spool Dimensions?

0.5kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm

Spool Diameter: 200±1mm

Spool Width: 65.6±2mm

Spool Weight: 190±7g

0.75kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 200±1mm Spool Width: 50.6±2mm Spool Weight: 125±7g

1kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 200±1mm Spool Width: 65.6±2mm Spool Weight: 140±7g

2kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 250±1mm Spool Width: 117.2±2mm Spool Weight: 370±18.5g

3kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 250±1mm Spool Width: 117.2±2mm Spool Weight: 425±21.3g

5kg plastic spool: 32mm/300mm/160mm/819g

Spool Inner Hole Diameter: 32 ±1mm Spool Diameter: 300±1mm Spool Width: 160±1mm Spool Weight: 819±30g

Spool Material: PP
