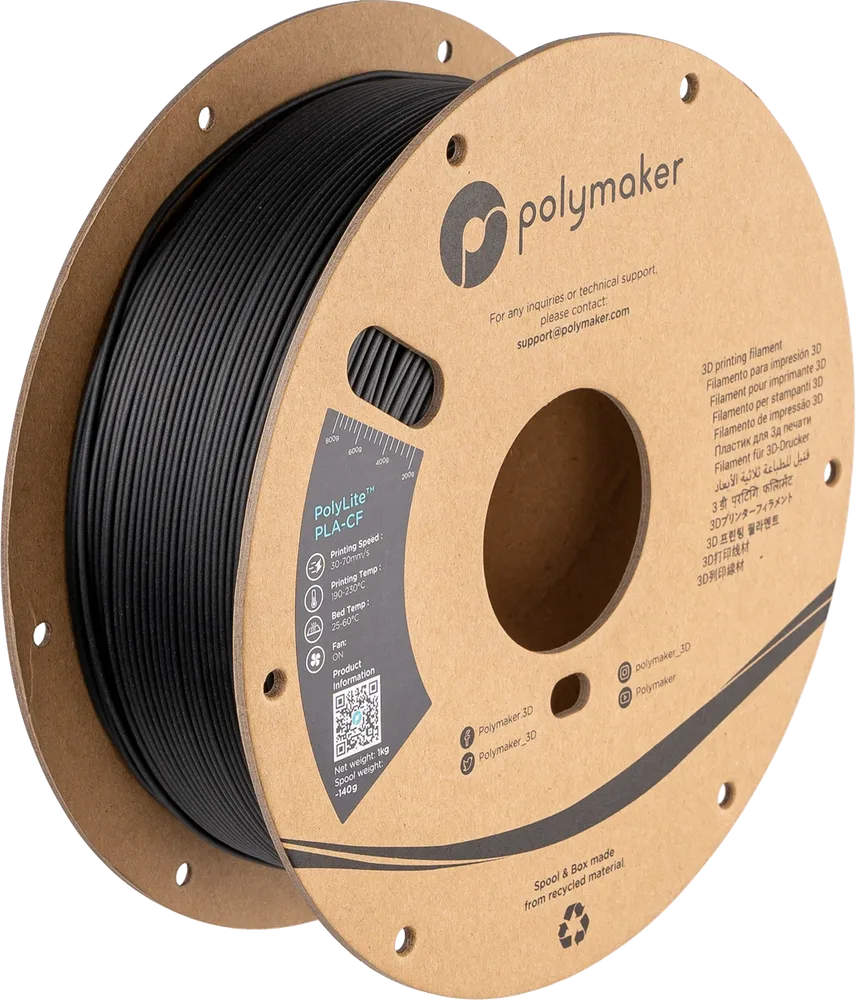

PolyLite™ PLA-CF

PolyLite™ PLA-CF is a carbon fiber reinforced PLA.

Can my printer print PolyLite™ PLA-CF

Your printer will need to be equipped with a hardened nozzle in order to print PolyLite™ PLA-CF.

Printing and Drying Settings?

Printing Temperature: 210˚C - 230˚C

Bed Temperature: 30˚C - 70˚C

Printing Speed: 25mm/s - 60mm/s

Fan: ON

Direct Drive:

Retraction Distance: 1mm

Retraction Speed: 20mm/s

Indirect Drive:

Retraction Distance: 3mm

Retraction Speed: 40mm/s

Drying Settings: 55˚C for 6h

(Only if the material has absorbed moisture)

How much carbon fiber does PolyLite™ PLA-CF contain?

PolyLite™ PLA-CF contains 8% carbon fiber by weight.

Spool Dimensions?

0.5kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm

Spool Diameter: 200±1mm

Spool Width: 65.6±2mm

Spool Weight: 190±7g

0.75kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 200±1mm Spool Width: 50.6±2mm Spool Weight: 125±7g

1kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 200±1mm Spool Width: 65.6±2mm Spool Weight: 140±7g

2kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 250±1mm Spool Width: 117.2±2mm Spool Weight: 370±18.5g

3kg cardboard spool:

Spool Inner Hole Diameter: 55±1mm Spool Diameter: 250±1mm Spool Width: 117.2±2mm Spool Weight: 425±21.3g

5kg plastic spool: 32mm/300mm/160mm/819g

Spool Inner Hole Diameter: 32 ±1mm Spool Diameter: 300±1mm Spool Width: 160±1mm Spool Weight: 819±30g

Spool Material: PP
